The Complete Guide to Coating Carbon Fiber Reinforced Polymer (CFRP) Installations

Carbon Fiber Reinforced Polymer (CFRP) has become a cornerstone of modern structural reinforcement. From strengthening foundation walls to reinforcing bridges, seawalls, parking decks, and high-rise structures, CFRP delivers unmatched tensile strength in a lightweight, minimally invasive format.

However, one crucial step often overlooked in design and installation is coating and protecting CFRP after installation. While the fiber and epoxy matrix provide structural strength, the system’s long-term performance depends on how well it is protected from fire, UV exposure, weather, and wear.

This guide explores the best coating strategies for CFRP, including fire-resistant coatings, UV-protective finishes, epoxy thickening for concealment, and adhesion techniques—so engineers, contractors, and property owners can make informed decisions.

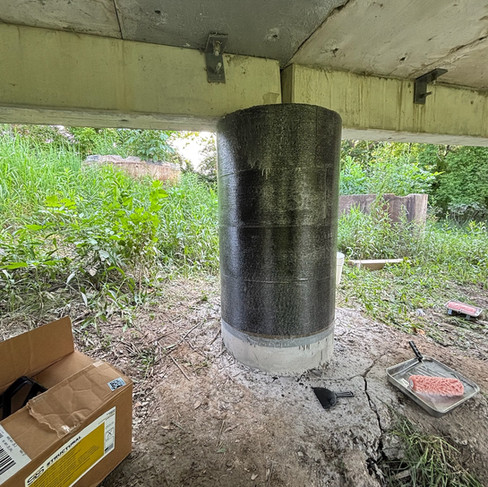

CFRP-wrapped bridge column reinforced for long-term durability

Completed bike path bridge column with CFRP reinforcement concealed beneath a smooth finish

Applying final epoxy coat to CFRP on a foundation stem wall for long-term strength

Completed foundation stem wall repair with CFRP fully concealed beneath a smooth protective coating.

Why Coating CFRP Installations Matters

CFRP systems, such as those installed by Structural Reinforcement Solutions (SRS), are designed for direct-bond applications on concrete, masonry, steel, and timber surfaces. Once bonded with epoxy, the reinforcement is structurally sound—but left unprotected, it is vulnerable:

• UV Degradation – Prolonged sunlight exposure weakens epoxy resins, leading to chalking, discoloration, and reduced bond performance.

• Fire Risk – Epoxy matrixes are combustible; unprotected CFRP may not meet building code requirements for fire resistance. (Independent ASTM E84 testing confirmed that SRS panels achieved a Class A Flame Spread Rating, but additional coatings are often required for code compliance in occupied structures.)

• Aesthetic Concerns – Exposed carbon fiber creates a visible weave pattern that may not suit architectural or finished environments.

• Durability & Adhesion – Protective coatings can extend the life of CFRP in harsh environments and serve as a base for other finishes (stucco, plaster, or paint).




Fire-Resistant Coatings for CFRP

Building codes often require fire protection for exposed CFRP installations. While CFRP provides structural strength, the epoxy resin matrix is thermoset plastic—and thus combustible. Fire-resistant coatings are applied over CFRP to slow flame spread and reduce smoke generation.

FireFree 88 (Intumescent Coating)

FireFree 88 is a water-based intumescent paint designed to meet ASTM E84 and NFPA 285 standards. Upon exposure to high heat, the coating expands, forming a char layer that insulates the substrate.

• Advantages: Easy spray or brush application, UL-tested assemblies, Class A fire rating.

• Use Cases: Interior CFRP installations, such as parking garages requiring code-approved fire resistance.

Albi Cote FRL-X

Albi Cote FRL-X is a solvent-based intumescent coating formulated for carbon fiber, steel, and other substrates.

• Advantages: Tested specifically for CFRP, high-build protective layer, smooth finish for topcoats.

• Use Cases: Both interior and exterior CFRP reinforcement where higher durability and finish quality are required.

Key Consideration: Always confirm coating compatibility with the epoxy resin. Some coatings require primers, and field adhesion testing should be performed before full-scale application. Albi-Cote FRL-X has been fully tested with SRS carbon fiber systems under ASTM E84, confirming Class A performance.

UV Protection for Carbon Fiber (CFRP) – Extending Longevity

For exterior applications such as seawalls, retaining walls, bridges, and balconies, UV protection is critical. Prolonged sun exposure causes epoxy resins to degrade, leading to discoloration, surface breakdown, and reduced bond strength. Without proper protection, CFRP installations in marine, coastal, and outdoor environments risk both structural performance and aesthetic quality.

Best Practices:

• Aliphatic Polyurethane Topcoats – Durable, UV-resistant, and available in multiple colors for architectural concealment.

• Acrylic Elastomeric Coatings – Provide flexibility, UV stability, and weather resistance.

• Pigmented Epoxy Seal Coats – Suitable for interior or low-sun exposure areas but should always be supplemented with a polyurethane or acrylic topcoat outdoors.

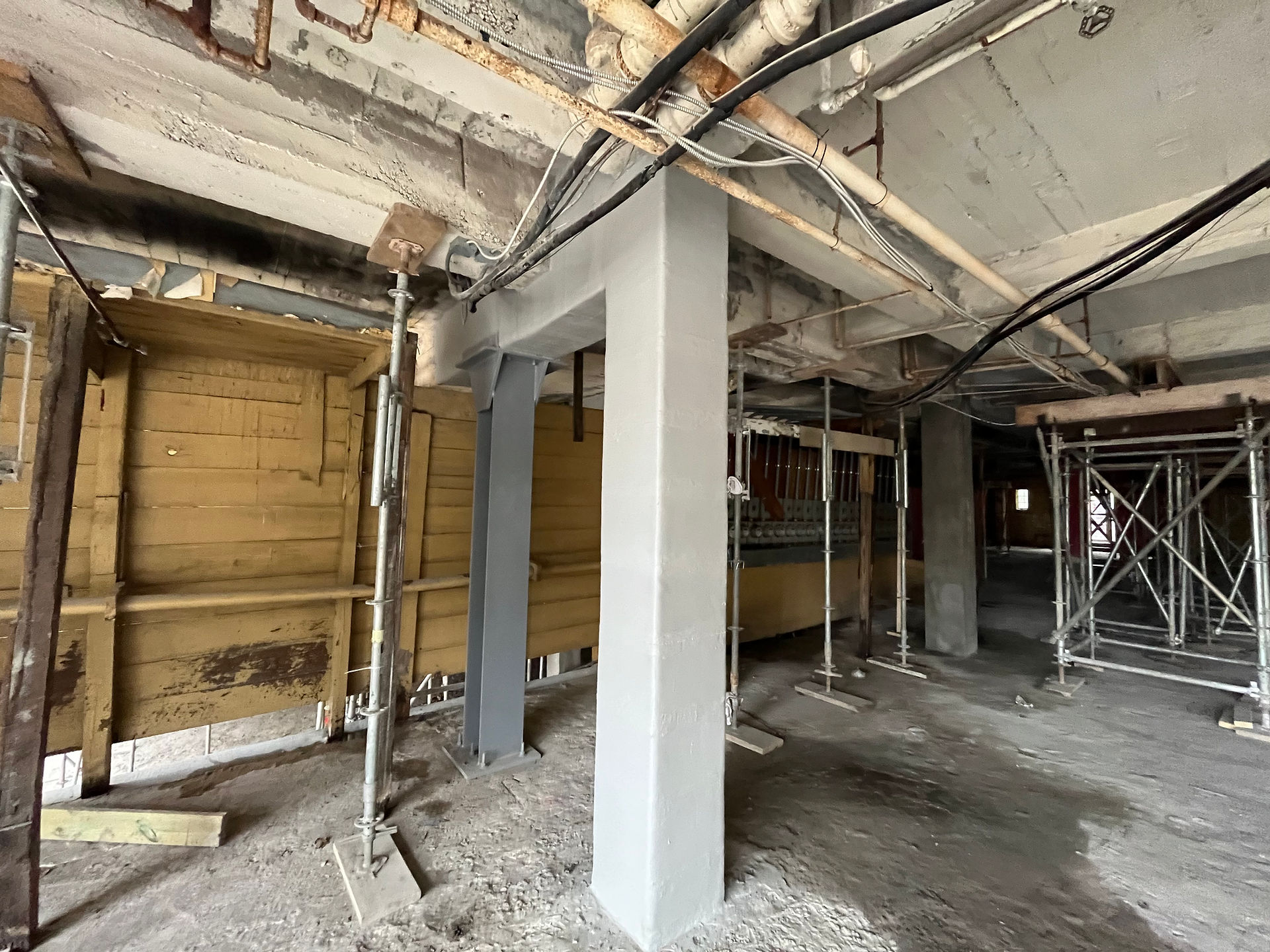

Parking garage column repair with CFRP, feathered joints using Short Stuff for a smooth finish."

Concealment, Edge Feathering & Finish Quality

For many projects, particularly in commercial or public settings, concealing carbon fiber reinforcement is just as important as strengthening it. Beyond protective coatings, the finish quality of a CFRP installation plays a major role in both performance and appearance. One of the challenges with externally bonded carbon fiber is the visible “step” at fabric edges. This can be minimized by modifying epoxy with thickening fibers such as Short Stuff, a fibrillated polyethylene microfiber blend supplied by SRS.

When added to epoxy systems, Short Stuff increases viscosity and improves workability, creating a paste-like consistency that holds its shape during application. This allows contractors to:

• Feather Edges – Smooth transitions at laminate boundaries for a seamless finish.

• Fill Voids & Irregularities – Improve adhesion by ensuring full surface contact.

• Enhance Mechanical Properties – Reduce shrinkage, improve shear strength, and minimize the risk of delamination.

• Create Sandable Surfaces – Short Stuff produces a finish that can be easily shaped and smoothed prior to final coatings.

By using thickened epoxy with Short Stuff, installers can conceal edges, achieve higher finish quality, and prepare CFRP surfaces to readily accept topcoats such as paint, stucco, or architectural finishes. This is especially valuable for commercial interiors, public facilities, and exposed architectural elements where both durability and aesthetics are critical.

Overpass columns reinforced with CFRP wraps, prepared for protective coating to enhance durability

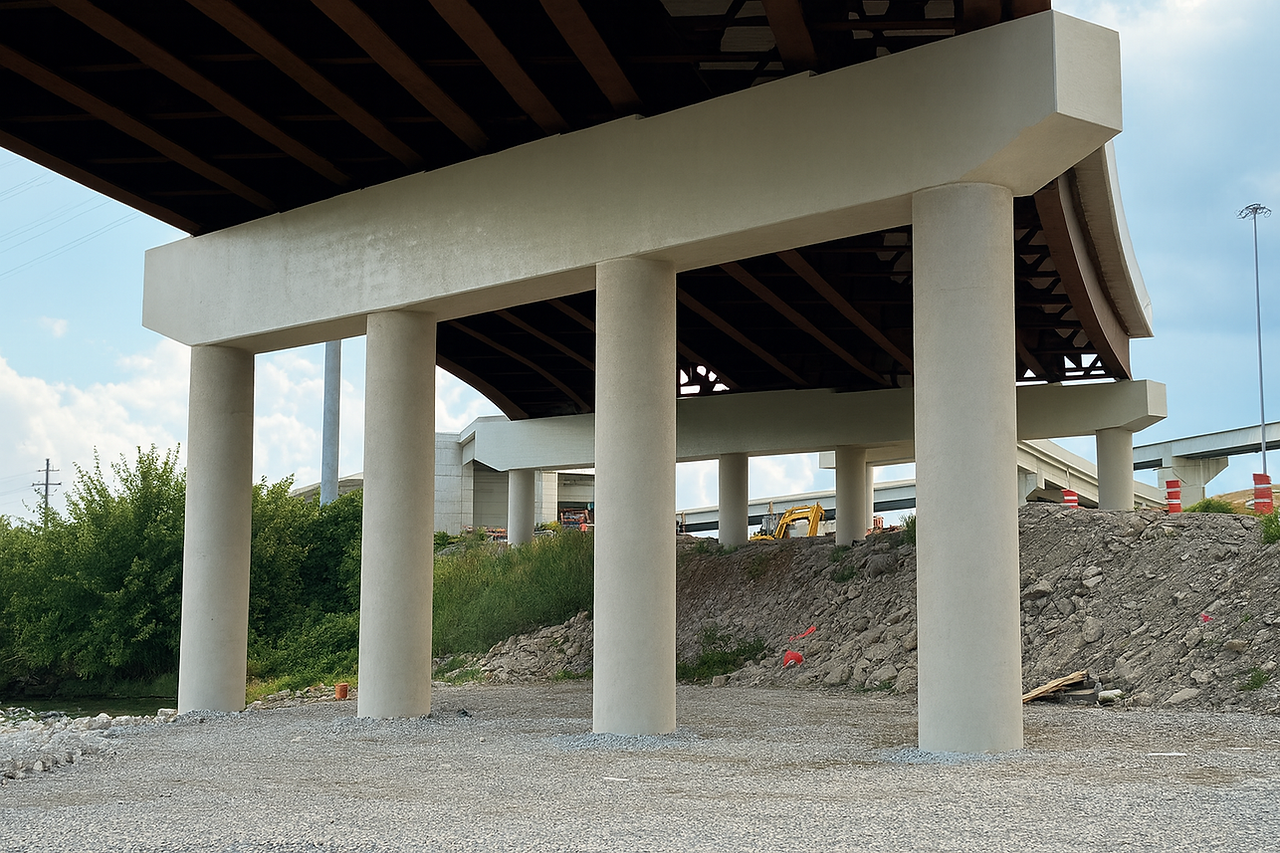

Overpass columns reinforced with CFRP, finished with a smooth protective coating

Surface Preparation & Adhesion

Coating CFRP requires proper preparation to ensure adhesion:

1. Allow Full Cure of Epoxy – Most CFRP resins, require at least 24–72 hours cure time depending on conditions. SRS-1000 Structural Epoxy Adhesive can be coated while still tacky to the touch, eliminating the need to sand a fully cured surface.

2. Light Surface Abrasion – A light sanding (or mechanical abrasion) removes gloss and improves adhesion if the epoxy has fully hardened.

3. Clean & Prime – Wipe with solvent (e.g., isopropyl alcohol) to remove dust and contaminants; apply primer if specified.

Sand Broadcast Option – Broadcasting silica sand into a tacky epoxy layer creates a high-bond surface for stucco, cementitious coatings, or paint, greatly improving topcoat adhesion.

Environmental & Application Considerations

Different projects call for different protection strategies:

• Marine & Coastal Environments – Use UV-resistant polyurethane or elastomeric coatings with high salt and moisture resistance.

• Industrial Facilities – Apply chemical-resistant coatings for protection against solvents, oils, or corrosive vapors.

• High-Traffic Areas – Add abrasion-resistant coatings or cladding to protect CFRP from impact damage.

• Fire-Rated Interiors – Always apply an intumescent fireproofing coating if required by code.

Codes, Testing & Compliance

The ASTM E84 “Tunnel Test” measures flame spread and smoke development. SRS panels achieved a Class A Flame Spread Index (FSI = 5) and Smoke Developed Index (SDI = 350). This classification is the highest achievable under NFPA and IBC for interior finishes, but coatings are still required when specific fire-resistance ratings are mandated.

Always check:

• Local building codes (IBC, NFPA 101 Life Safety Code).

• Manufacturer data sheets for compatibility and compliance.

• Whether coatings must also meet ASTM E119 (fire endurance) or NFPA 285 (multi-story assemblies).

Recommendations & Best Practices

• Always Coat Exterior CFRP – UV protection is non-negotiable for long-term durability.

• Use Intumescent Coatings for Interior Fire Protection – FireFree 88 or Albi Cote FRL-X are proven options.

• Feather & Conceal with Short Stuff – SRS’s fibrillated fibers improve finish quality and adhesion.

• Sand Broadcast for Adhesion – A critical step if stucco or secondary finishes will be applied.

• Match Coating to Environment – Marine, industrial, or architectural environments require tailored solutions.

• Document Everything – Include coating systems in project specs and owner handover documents.

Top image: Concrete retaining wall reinforced with CFRP carbon fiber straps after surface preparation. Bottom image: Completed retaining wall repair with coated in concrete coating, ready for long-term performance.

Conclusion

CFRP delivers exceptional reinforcement, but its long-term success depends on proper coating, finishing, and protection. By applying tested fireproofing, UV-resistant coatings, and concealment strategies like Short Stuff fibers, engineers, contractors, and property owners can ensure carbon fiber reinforcement that is durable, compliant, and built to last.
