Severely Cracked Retaining Wall Repair, Engineered Stabilization Without Replacement
- Jarred Jones
- May 8
- 3 min read
Updated: May 11
This challenging hillside project in Massachusetts demonstrates what’s possible when local engineering, carbon fiber solutions from SRS, and a skilled contractor all come together to get the job done right.
Watch what a retaining wall repair of this scale looks like from start to finish (1 min)
Towering above a garden patio below, and built into a steep hillside, this 15+ foot concrete retaining wall was holding back the entire grade of the backyard in the property above. With decades of tree root and soil pressure, this severely deteriorated retaining wall had had been a real cause for concern for both neighbors on this Sommerville, MA property.
Over time, severe structural cracks had developed and progressively widened across multiple sections of the retaining wall. The wall showed clear signs of structural distress, including outward movement and tipping at the top, along with long diagonal cracking extending through broken sections of the structure. Due to the site conditions and surrounding property constraints, the project required an engineered retaining wall repair without replacement approach to stabilize the structure and prevent further movement. Everything below it, including the neighboring yard, fencing, landscaping, and pergola, sat directly in the line of failure.
A Tight Site with No Room for Mistakes
Walls in this condition are often removed and replaced. But on a site like this, that approach would have introduced significant risk and cost impacts to both property owners.
The site conditions made the situation much more complicated, with the wall built into a steep slope with limited access from both above and below. With no clean staging area, no easy equipment positioning, and very little room to move materials, every part of the repair had constraints to consider.
Getting the Wall Working as One Again
Since the vertical cracking extended across multiple broken sections, the structure was no longer transferring load properly. To ensure the wall functioned as a single system all voids needed to be filled in a high compressive strength material prior to the CFRP installation.
The large cracks and voids were repaired and filled flush using SRS-2000 Structural Epoxy Paste, reconnecting the wall internally to enable it to transfer load as a unified structure, while also creating a smooth surface profile for the carbon fiber to transition across the filled areas.
Stabilizing Movement Reinforcing Beyond the Cracks
SRS-660BI Carbon fiber was installed over the major crack zones, handling localized stress and reinforcing the most compromised areas.

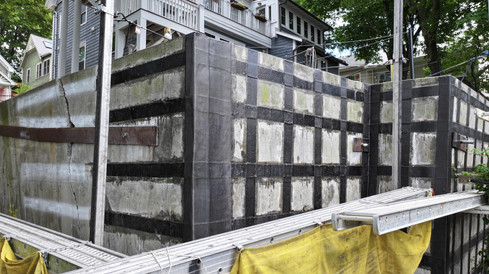

A full grid of SRS-600UNI Caron Fiber was installed as a global strengthening grid that ties the whole wall together, redistributing loads across the entire surface. Instead of individual broken wall sections behaving independently, the retaining wall can perform as one reinforced structure.
Installation Under Real Conditions
A comprehensive retaining wall reinforcement system is effective only when it is correctly engineered and properly installed. And on a site like this, it requires a contractor and engineer knowledgeable about both the materials and challenging site conditions.
AJA Engineering, a local company from Marshfield, MA, serving as the EOR, identified that a non-invasive surface-applied solution was appropriate for this project and collaborated with SRS to create an innovative method using carbon fiber. With their extensive background in excavation and foundation repair Marsh X Development was awarded the project and carried out the installation with precision and care, skillfully managing the site's constraints with outstanding care.
Weighing up Retaining Wall Repair Without Replacement
Replacement here would have meant:
Major excavation on a steep hillside
Increased risk to the neighboring property
Significant disruption to both properties
Instead, the wall was:
Stabilized in place
Reinforced as a complete system
Brought back into structural performance without removal
Take a Closer Look
An exterior paint was selected as the final coating to hide the carbon fiber and shield the epoxy from prolonged UV exposure. Thanks to the ultra-thin profile of the CFRP system, the completed installation seamlessly integrated with the surrounding environment. Alongside the carbon fiber reinforcement, stone-textured precast blocks were installed on along the one hillside to support retaining the existing wall and enhance stabilization and aesthetics.
