Carbon Fiber Reinforcement for Cracked and Deteriorated Stem Walls
At Structural Reinforcement Solutions, we specialize in stem wall foundation repair using advanced carbon fiber technology. Our products reinforce and restore compromised foundations, ensuring long-lasting strength and stability.
Carbon fiber’s exceptional durability and flexibility make it the ideal solution for addressing cracks, spalling, and other structural issues in stem walls, providing a cost-effective and minimally invasive repair method that protects your home’s foundation for years to come.

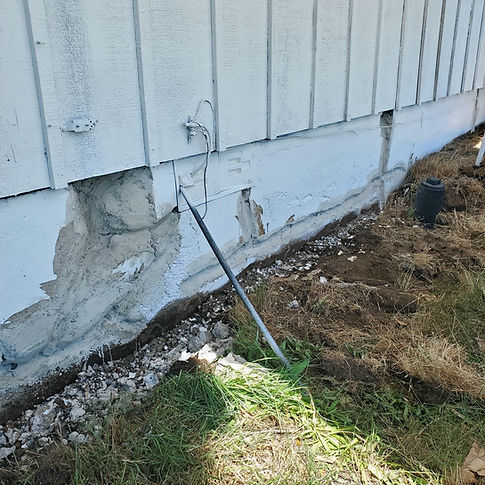

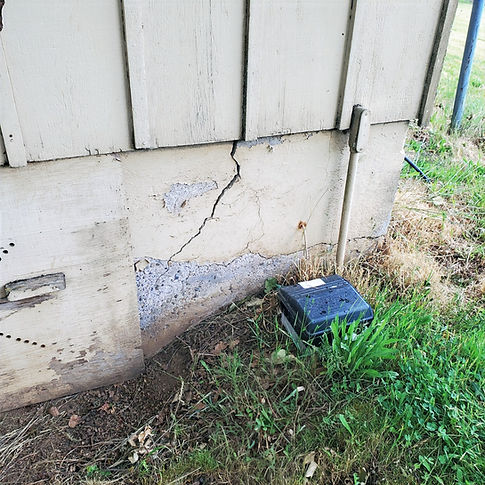

Why Stem Walls Crack and Deteriorate
_edited.png)
Concrete stem walls commonly develop horizontal cracking when moisture reaches embedded reinforcing steel and corrosion begins. As the steel corrodes, it expands and places pressure on the surrounding concrete.
Over time, this can lead to cracking, delamination, spalling, and localized loss of the concrete section.
Before the wall is strengthened, deteriorated concrete should be removed and the condition of the reinforcing steel evaluated and addressed as required. The damaged concrete can then be repaired before the carbon fiber reinforcement system is installed.
If the underlying deterioration is not properly addressed, corrosion can continue behind the repair and contribute to future cracking or patch failure.

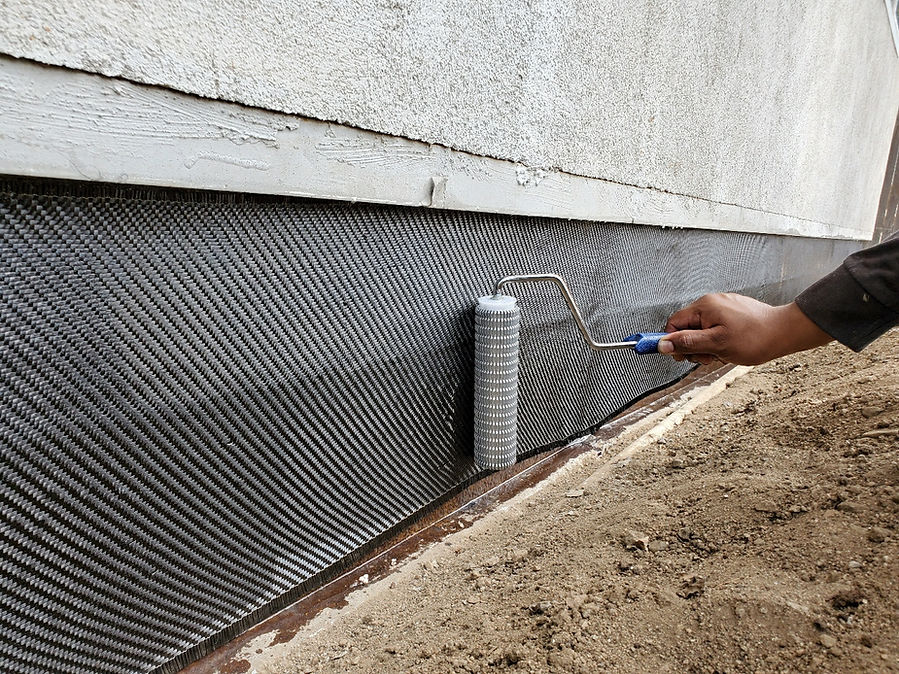

How Carbon Fiber Reinforces a Stem Wall
Bidirectional carbon fiber fabric can be installed over repaired stem wall areas to provide reinforcement in more than one direction.
This makes it well suited for repairs where cracking, corrosion-related deterioration, or localized section loss has affected the wall and distributed reinforcement or confinement is required.
The carbon fiber fabric is bonded to the prepared concrete surface with structural epoxy to create a CFRP composite strengthening system.
The reinforcement layout, fabric orientation, coverage, and termination details should be based on the structural condition and project requirements.
Structural Epoxy Is Critical to CFRP Performance
Carbon fiber fabric and structural epoxy work together as a composite strengthening system.
SRS-1000 Structural Epoxy Resin is used to saturate and bond the carbon fiber fabric to the properly prepared concrete surface. Once cured, the epoxy transfers load between the substrate and the reinforcement.
Proper surface preparation, mixing, saturation, and installation are essential to achieving reliable bond performance.
Signs of Stem Wall Deterioration
Common warning signs of stem wall deterioration can include:
-
Horizontal cracking along the stem wall
-
Concrete spalling or delamination
-
Rust staining
-
Exposed or corroded reinforcing steel
-
Previously repaired areas that are cracking again
-
Localized deterioration around corners or wall transitions
Horizontal cracking is often associated with expansion of corroding reinforcing steel within the concrete. As deterioration progresses, cracks can widen and additional concrete can become loose, delaminated, or spalled.
Early evaluation is important because visible cracking may indicate deterioration below the surface that should be addressed before strengthening or repair work begins.

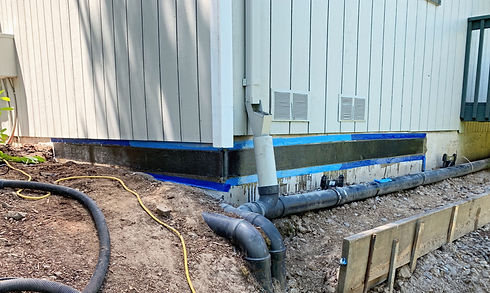

Engineered Reinforcement for Existing Stem Walls
Carbon fiber fabric can conform closely to existing concrete surfaces, corners, and changes in geometry, allowing reinforcement to be installed without adding bulky structural components.
Because each stem wall condition is different, the reinforcement layout should be based on the crack pattern, wall geometry, condition of the reinforcing steel, and the structural requirements of the project.

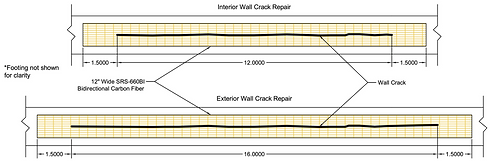

Typical Horizontal Stem Wall Crack Repair Detail
The reinforcement layout shown here illustrates a typical carbon fiber repair configuration for horizontal cracking in a concrete stem wall.
Actual fabric width, length, orientation, and termination details should be based on project-specific conditions and engineering requirements.

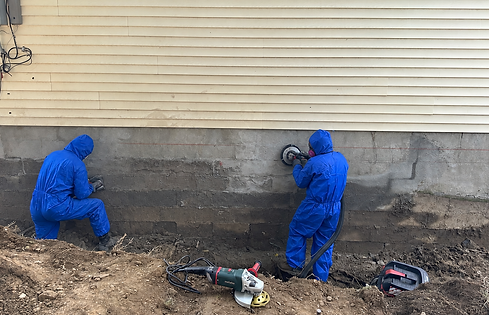

Surface Preparation Before Carbon Fiber Installation
Proper surface preparation is one of the most important steps in a successful stem wall repair.
Before carbon fiber reinforcement is installed, deteriorated concrete, coatings, dirt, laitance, and other bond-breaking materials should be removed so the substrate is sound, clean, and ready to receive the repair system.
Any cracked, loose, or delaminated concrete should be addressed first. If reinforcing steel is exposed, its condition should be evaluated and treated as required before patching and strengthening work proceeds.
The prepared surface should be repaired and profiled as needed to create a suitable base for the structural epoxy and carbon fiber fabric. Corners, transitions, and irregular areas may also require additional attention so the reinforcement can lay flat and bond properly.
Careful surface preparation helps promote reliable adhesion and consistent load transfer between the existing concrete, structural epoxy, and carbon fiber reinforcement.

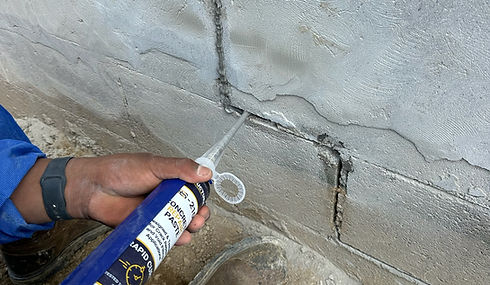

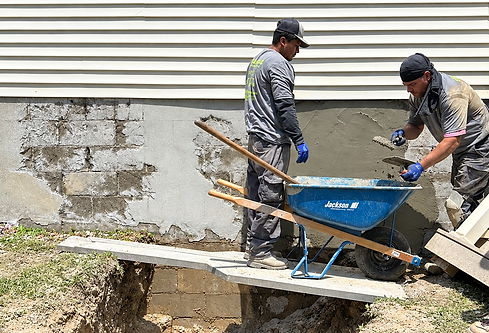

Repairing Damaged Concrete Before Carbon Fiber Installation
Before carbon fiber reinforcement is installed, damaged or irregular concrete should be repaired so the CFRP system is bonded to a sound, continuous surface.
SRS-2100 Concrete Repair Paste is a two-component repair material used for patching, filling voids, rebuilding damaged areas, and preparing concrete and masonry surfaces for structural repair.
On stem wall projects, it can be used where deterioration, surface defects, or localized section loss must be corrected before the carbon fiber strengthening system is installed.
The objective is to restore a suitable substrate so the structural epoxy and carbon fiber fabric can achieve consistent contact with the repaired surface.
SRS has you covered with the most advanced rapid cure repair paste available
A high performance structural paste designed for concrete and masonry repair. The rapid cure two-component formula is ideal for filling voids in cracked concrete, setting injection ports and anchoring rebar. SRS-2100 is tested to ICC-ES, AC308 and ACI 355.4 to deliver ultimate versatility in wet or dry environments under a wide temperature range.
